• Модель:
    K551392
  • Артикул:
    K551392
  • Ältere Produktreihe:
    repro-fix
  • Anwendung:
    KMG
  • Außen-∅ a:
    11,8
  • Außen-∅ b:
    6 mm
  • Gewicht:
    2 g
  • Höhe 1:
    7,5 mm
  • Länge 1:
    16.5 mm
  • Länge 2:
    7,5 mm
  • Material:
    Delrin
  • Max. diameter:
    20
  • Min. Durchmesser:
    6
  • Produktreihe:
    eco-fix eco-fixplus
  • Systemkomponente:
    Positioning component
  • Winkel:
    120°
806 грн.
Есть в наличии

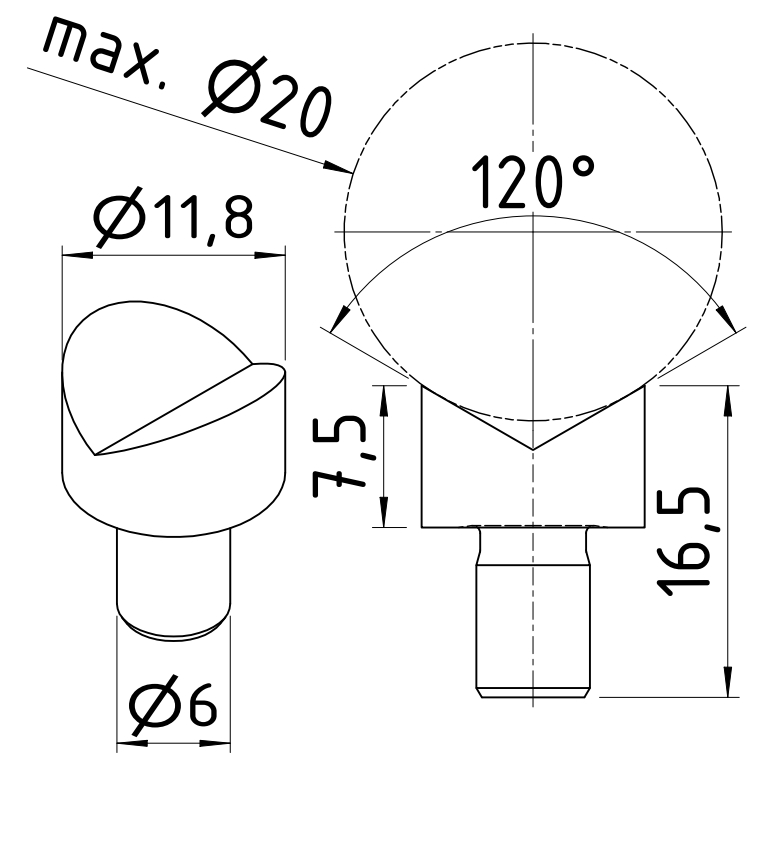

V-anvil insert ø 12 mm for the location-defined take up of for e.g. rotationally symmetrical parts. Delrin POM-H for sensitive surfaces. Delrin®, also known as polyoxymethylene (POM-H), is an engineering thermoplastic with excellent mechanical properties. It is characterised by high tensile strength and stiffness, low friction and high wear resistance. Good dimensional stability and machinability. Low moisture absorption and chemical resistance to fuels, solvents and neutral chemicals. It is ideal for contact with sensitive surfaces such as finely ground, polished or coated surfaces.
