- Модель:K551423
- Артикул:K551423
- 50
- Anwendung:KMG Shape fixturing system

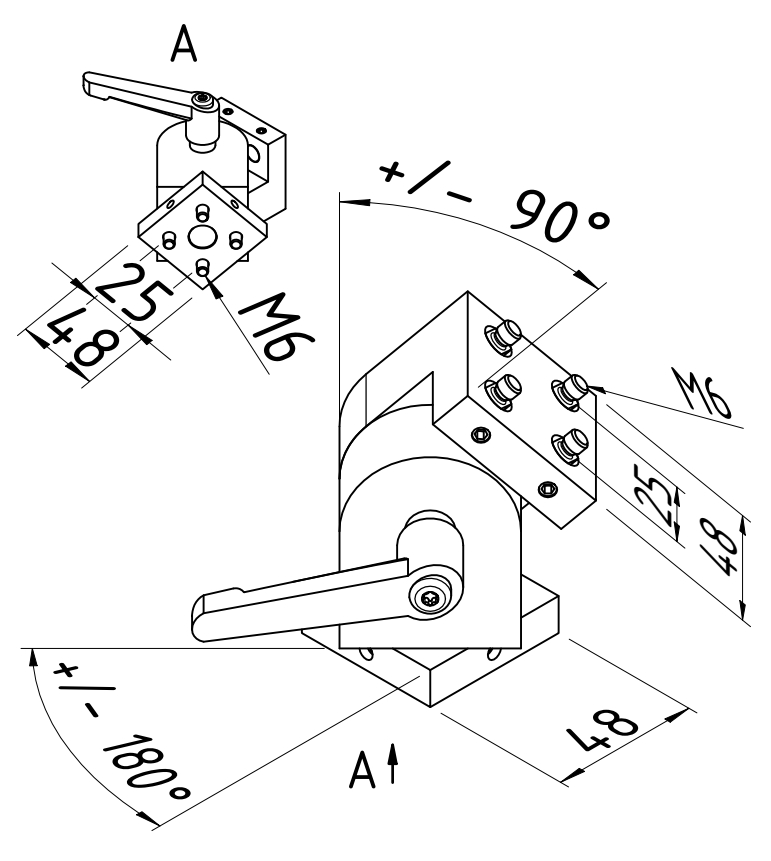

- Beschreibung:Swivel joint for mounting and positioning of K551469 PinFlex shape clamping system. Easily adjust the rotational (360°) and angular position (180°) of K551469 with the 2 rotational axes. Secure the angle position with the clamping handle. Lock the rotational axis with M6 screws. The PinFlex clamp is attached securely by 4 clamping bolts that are screwed into K551469 and then tightened by clamping screws on the swivel joint side. Mounting materials included.
- Breite 1:48 mm
- Gewicht:1080 g
- Gewinde 1:M6
- Höhe 1:100 mm
- Länge 1:48 mm

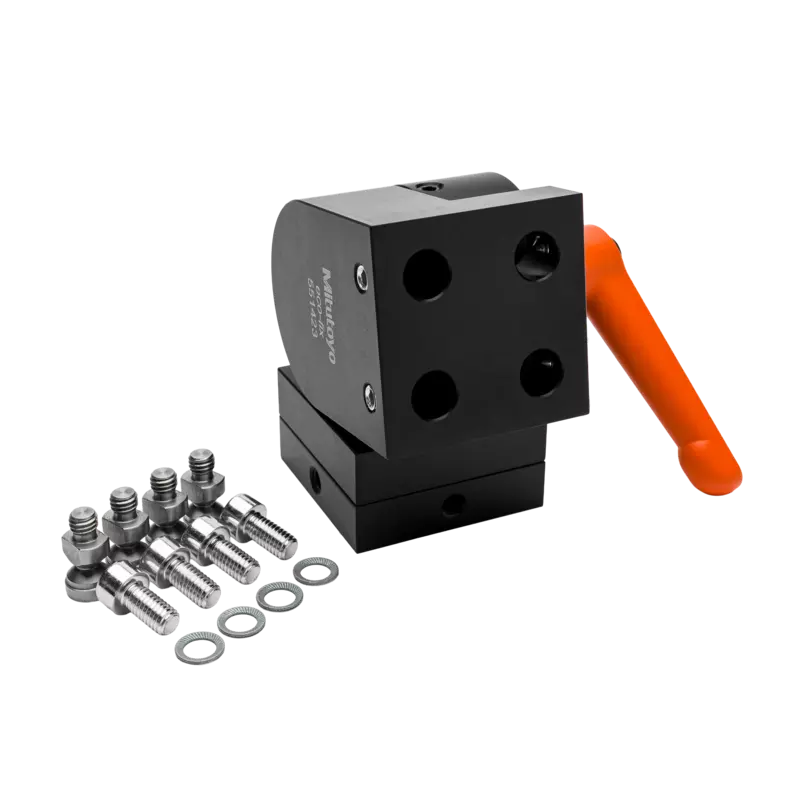

- Lieferumfang:Ecrou de fixation Ø10 mm, M6, rondelle 7 mm 4 pcs. Jopint pivotant 1pc.|Vis M6 x 12 mm 4 pcs.|Ecrou de fixation Ø10 mm, M6, rondelle 7 mm 4 pcs. Vis M6 x 12 mm 4 pcs.
- Menge:1
- Produktreihe:eco-fix eco-fixplus PinFlex
- Systemkomponente:Base component
- Thread spacing 1:25 x 25 mm

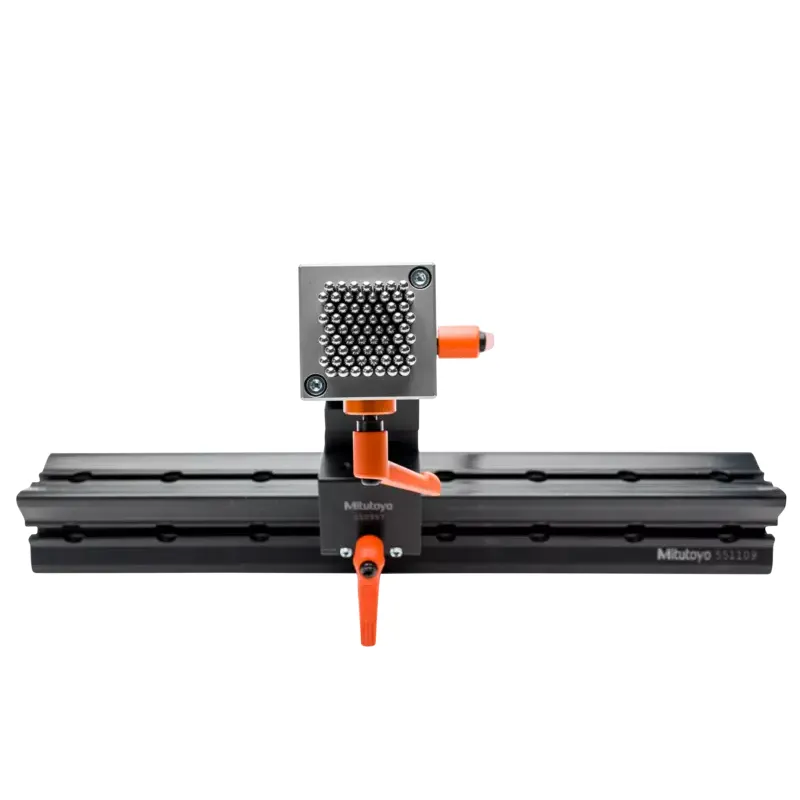

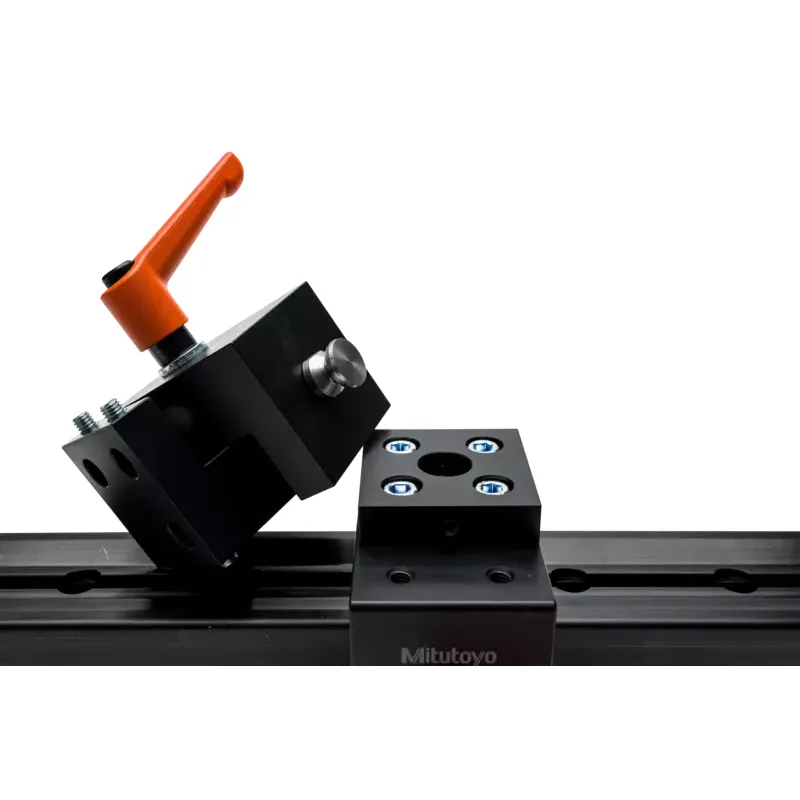

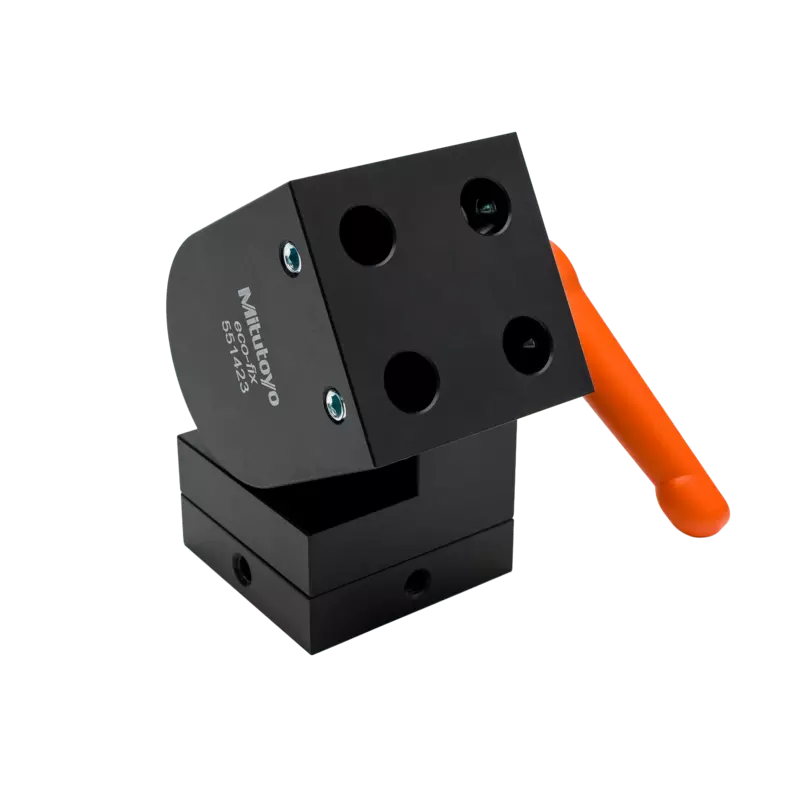

Swivel joint for mounting and positioning of K551469 PinFlex shape clamping system.

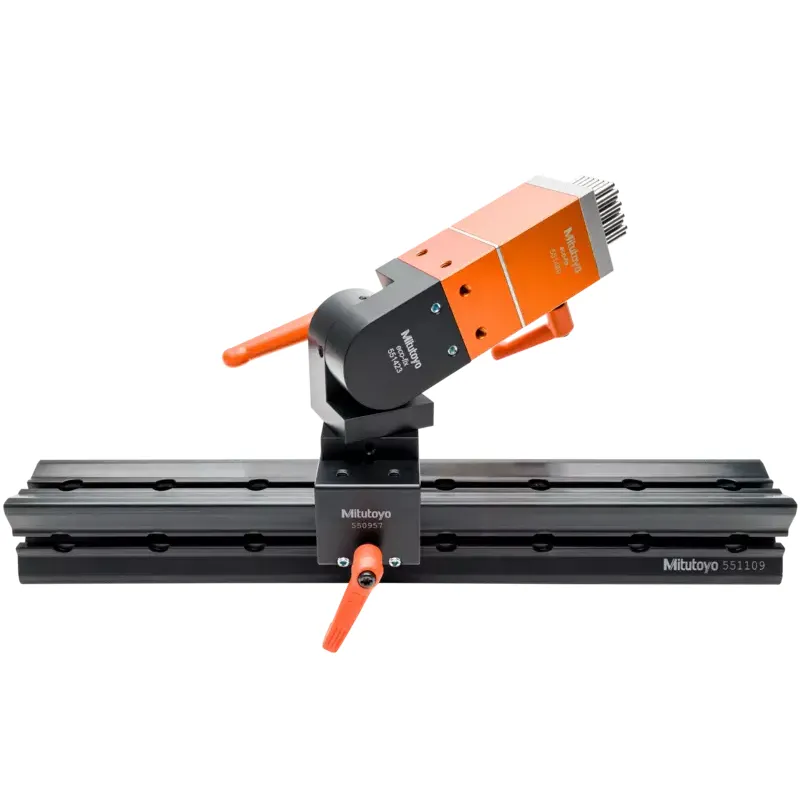

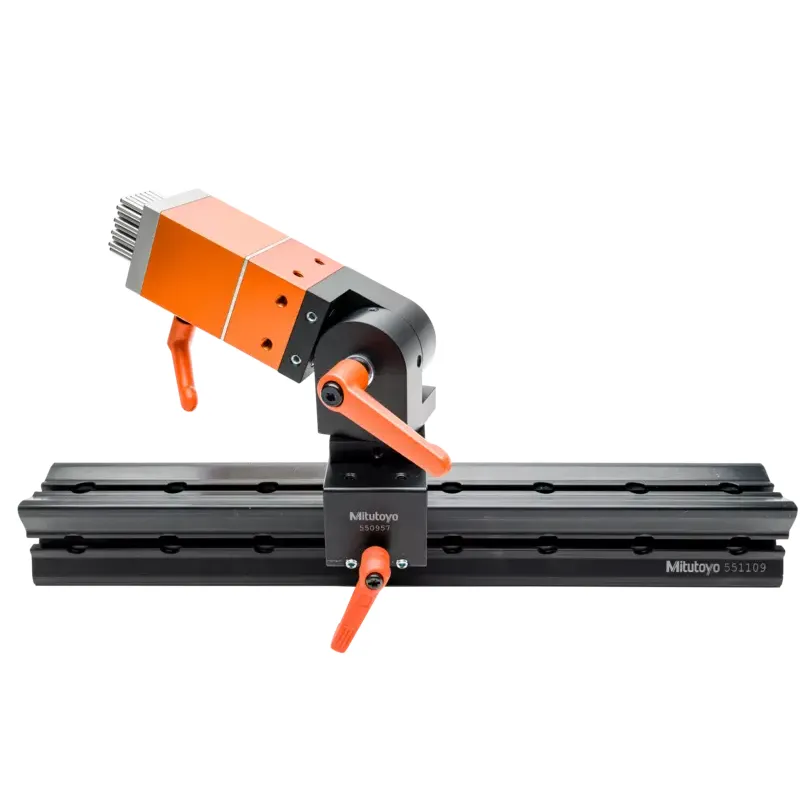

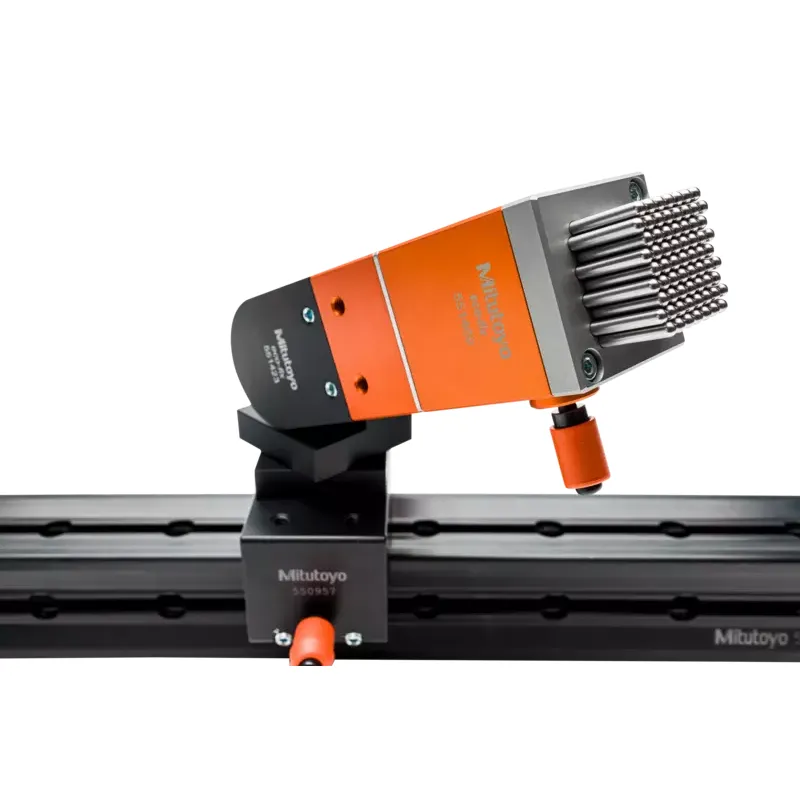

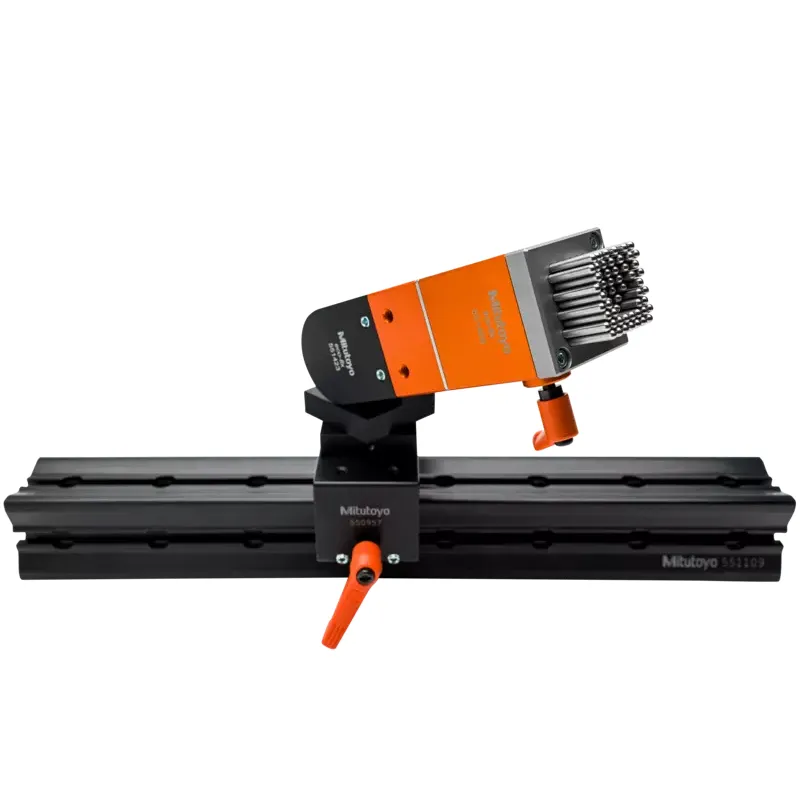

Easily adjust the rotational (360°) and angular position (180°) of K551469 with the 2 rotational axes.
Secure the angle position with the clamping handle. Lock the rotational axis with M6 screws.
The PinFlex clamp is attached securely by 4 clamping bolts that are screwed into K551469 and then tightened by clamping screws on the swivel joint side.
Mounting materials included.
