- Модель:K551471
- Артикул:K551471
- 50
- Anwendung:VMM
- Breite 1:90 mm
- Gewicht:210 g
- Länge 1:110 mm
- Menge:1
- Produktreihe:opti-fix
- Systemkomponente:Base Components
- Winkel:90°

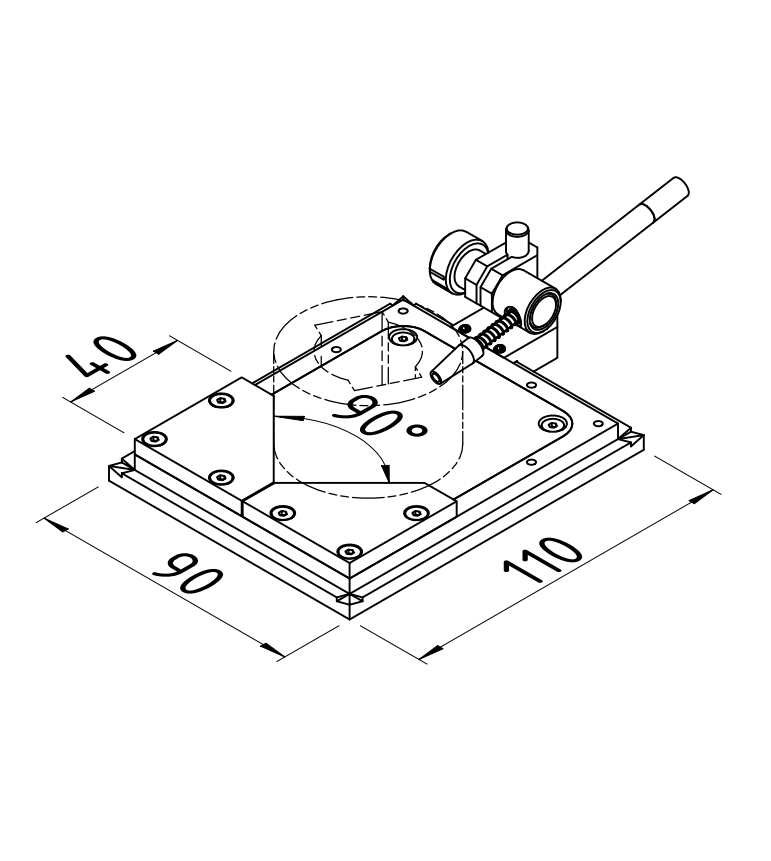

Clamping pallet with prism, complete 90 x 110 mm.
For repeatable positiong of parts in the pallet prism and of the pallet itself.
Consists of:
- Pallet base 90 x 110 mm
- Prism 90°
- K550850 Holder for spring clip 1x M4
- K551083 Clamping knuckle
- K550891 M4 straight pin ø 6 mm
- K551012 Spring-loaded clamping rod
