- Модель:211-544-13
- Артикул:211-544-13
- 50
- Max. messbarer Werkstückdurchmesser:280 mm
- Max. Werkstück ∅:440 mm
- Max. Werkstückgewicht:25 kg
- Modell:RA-120
- Zoll/Metrisch:Zoll / metrisch

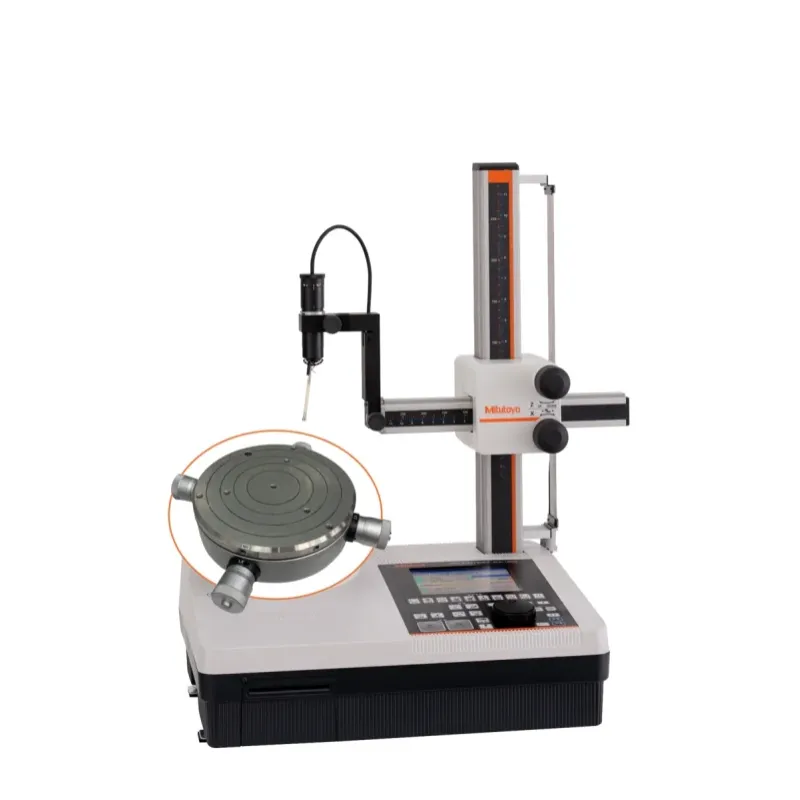

This is a compact roundness tester with a mechanical adjustment table function.
It makes the task of centering & leveling easy enough for even an untrained operator to perform, through these four simple steps:
It makes the task of centering & leveling easy enough for even an untrained operator to perform, through these four simple steps:
- Preliminary measurement of two cross sections on the workpiece.
- The centering and leveling adjustment values are displayed.
- The mechanical heads on the rotary table are adjusted to match the values displayed.
- Centering and leveling is complete. [Centering range : ±3 mm - Leveling range : ±1°]
