- Модель:176-988-13
- Артикул:176-988-13
- 50
- Betrachtungsbild:Seitenrichtig
- Betrachtungstyp:Bright/Dark Field (BF/DF)
- Gewicht:148 kg
- Größe der Glasplatte:270 x 240 mm
- Längenmessabweichung (bei 20 °C):XY-Achse: (2.2+0.02L) µmZ-Achse: (5+0.04L) µmL: Messbereich (mm), unbelastet(JIS B 7153)
- Max. Messtischbelastung:20
- Max. Werkstückhöhe:220 mm
- Messsystem:X, Y and Z axis (3 axes)
- Messtischabmessungen:410 x 342 mm

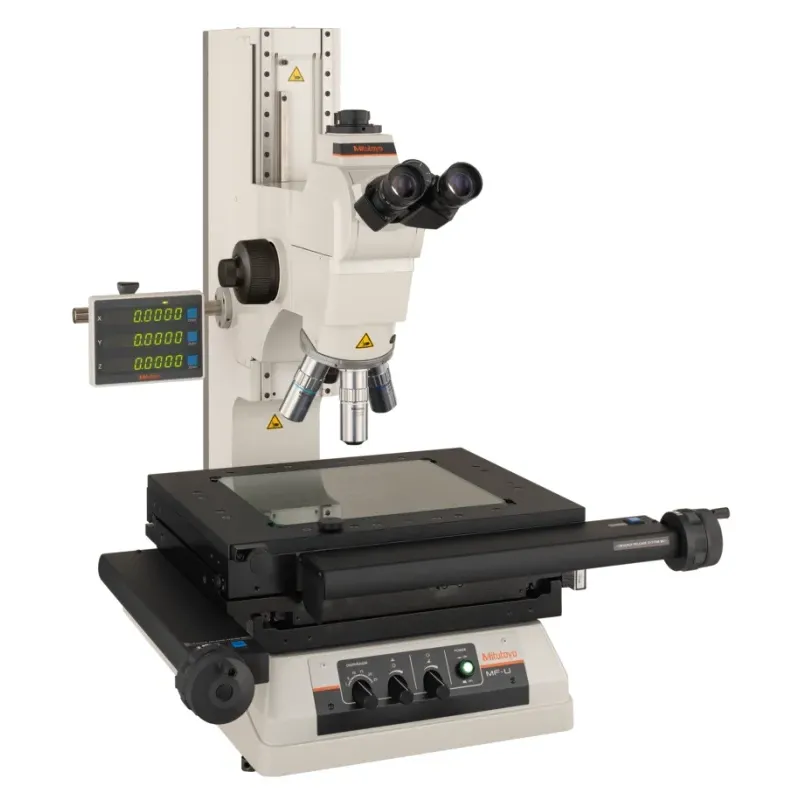

- Modell:MF-UD2.017D
- Schwenkbereich:±5°
- Tischbewegung:X- und Y-Achse mit Schnellverstellung
- XY-Verfahrbereich:200 x 170 mm
- Z-Achsen-Verfahrbereich:220 mm
A complete configuration of a MFU microscope always consists of:
- A main unit (stand, stage, microscope head, counter), together with standard accessory: Tilting Head Binocular Tube including 2 10X/24 Eyepiece (378-866)
- Indispensable optional accessories, which are mandatory to choose:
- Objective Lens Turret/Revolver: At least one of the options is necessary for operation.
- Objective Lens(es):
- Brightfield Lenses
- Brightfield/Darkfield Lenses At least one of the options is necessary for operation.
- Brightfield Lenses
- Illumination Unit: At least one of the options is necessary for operation.
- Objective Lens Turret/Revolver: At least one of the options is necessary for operation.
- There are other not mandatory options:
- Factory Set Options: Focus Pilot FP-05U, it must be adjusted to the lenses used. This only can be done beforehand in the factory using the customer‘s lenses. Exchanging the lenses later by customer will decrease the performance of the Focus Pilot. If you are interested in this option, please contact our sales support.
- Other optional accessories
