• Модель:
    810-448-11-DSET
  • Артикул:
    810-448-11-DSET
  • Aperture diaphragm:
    variable
  • Applicable Knoop scales:
    HK0.3; HK0.5; HK1
  • Applicable Vickers scales:
    HV0.3; HV0.5; HV1; HV2.5; HV3; HV5; HV10; HV20; HV30
  • Auflösung:
    0,01 HV units (settable)
  • Außenabmessungen (BxTxH):
    382x627x874 mm
  • Auswahl Prüfkraft:
    AVPAK software
  • Autofocus unit:
    810-465
  • Bedienung Revolver:
    Touch panel
  • Bereich Prüfkraft:
    9.807-490N (1-50kgf)
  • Betriebstemperatur °C:
    5-40
  • Brinell-Skalen:
    HBW 1/30; HBW 1/10; HBW 1/5; HBW 2.5/31.25**; HBW 1/2,5; HBW 2.5/15.625**; HBW 1/1; HBW 2.5/6.25**
  • Datenausgabe:
    PDF, Excel
  • Diamant Eindringkörper:
    Enthalten
  • Flacher Amboss:
    810-039 Außendurchmesser Ø64 mm
  • Focus method:
    automatic
  • Härtevergleichsplatte:
    700 HV10 Ø64mm x 15mm
  • Indenter approach speed:
    selectable 60 μm/s/150µm/s
  • Kompatibel mit MeasurLink:
    Ja
  • Leistungsaufnahme Watt:
    89
  • Light source illumination unit:
    Weiße LED
  • Masse Hauptgerät:
    71.9 kg
  • Max. Werkstückgewicht:
    3 kg
  • Max. Werkstückhöhe:
    132 mm
  • Measuring microscope:
    optional
  • Netzleitung:
    Nicht enthalten
  • Normen Brinell:
    DIN EN ISO 6506, ASTM E10, JIS B7724
  • Normen KC Bruchzähigkeit:
    based on IF method (JIS R1697)
  • Normen Knoop:
    ISO 4545-2, ASTM E92, ASTM E384, JIS B 7734
  • Normen Vickers:
    ISO 6507-2, ASTM E92, ASTM E384, JIS B 7725
  • Number of indenter ports:
    1 (equipped)
  • Number of objective lens ports:
    3 (3 equipped)
  • Optical system:
    Infinitely corrected
  • Prüfdauer:
    5-999 s (1 s Schritte)
  • Prüfkraftaufbringung:
    Totgewichtssystem
  • Prüfraumausladung:
    170 mm
  • Prüftisch und Amboss:
    Ø19 mm
  • Prüfzertifikat:
    Enthalten
  • Range XY:
    100x100 mm
  • Range Z-axis:
    1.4 mm
  • Relative Luftfeuchtigkeit:
    80 % oder weniger, ohne Kondensation

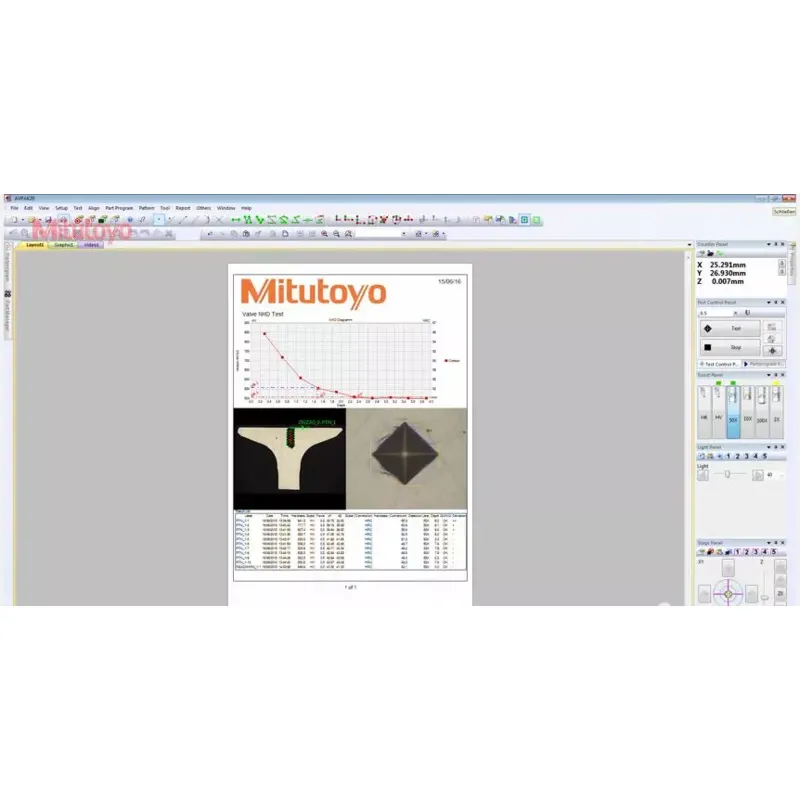

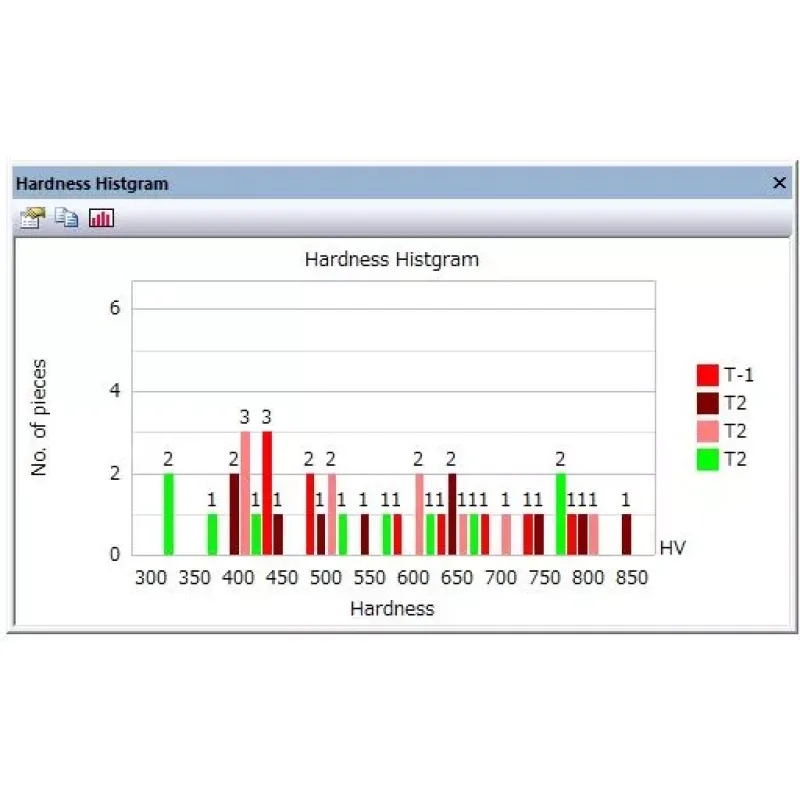

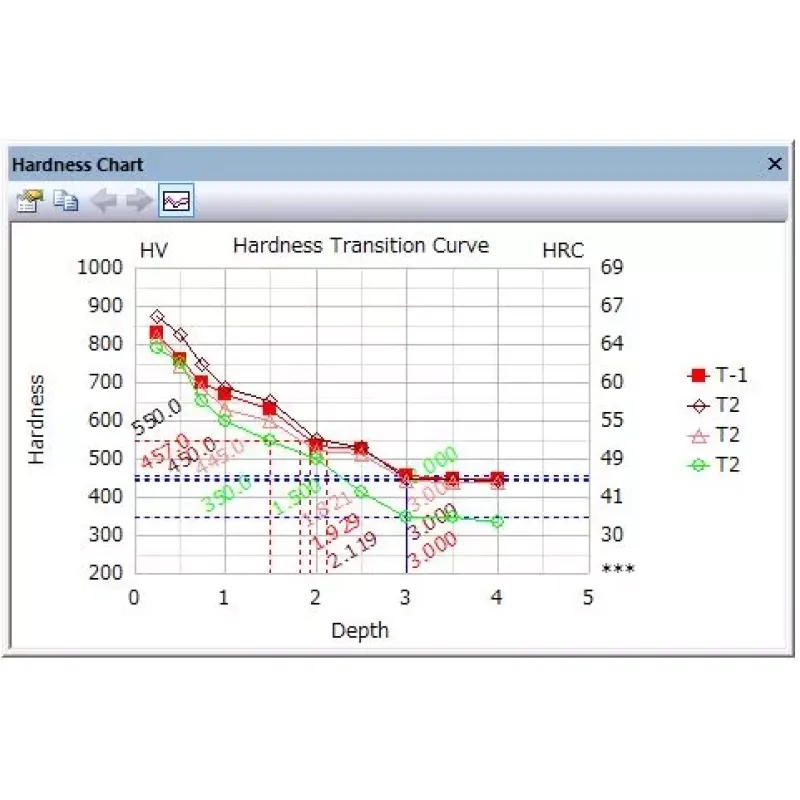

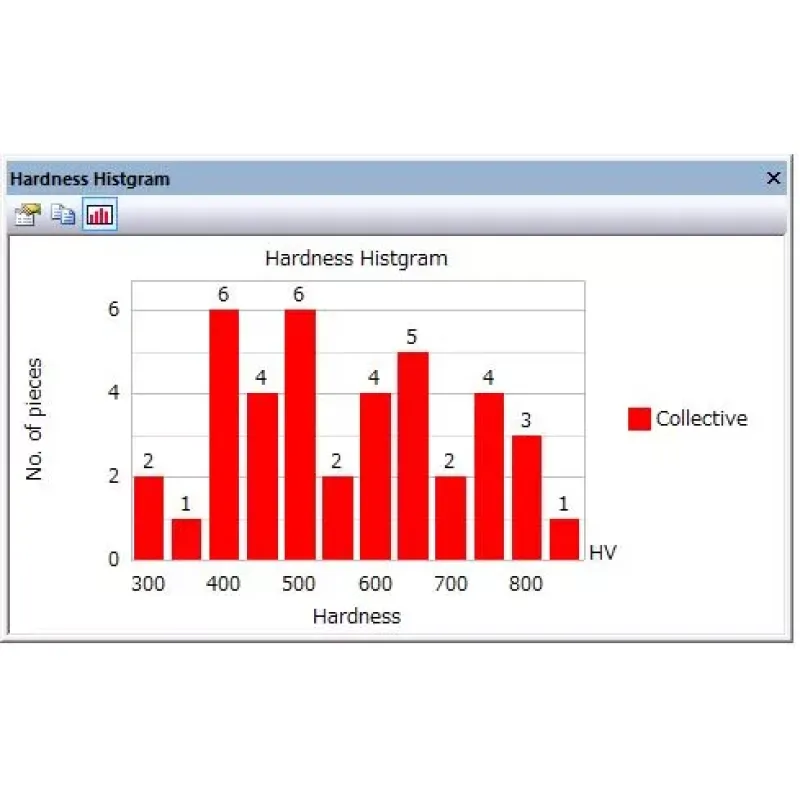

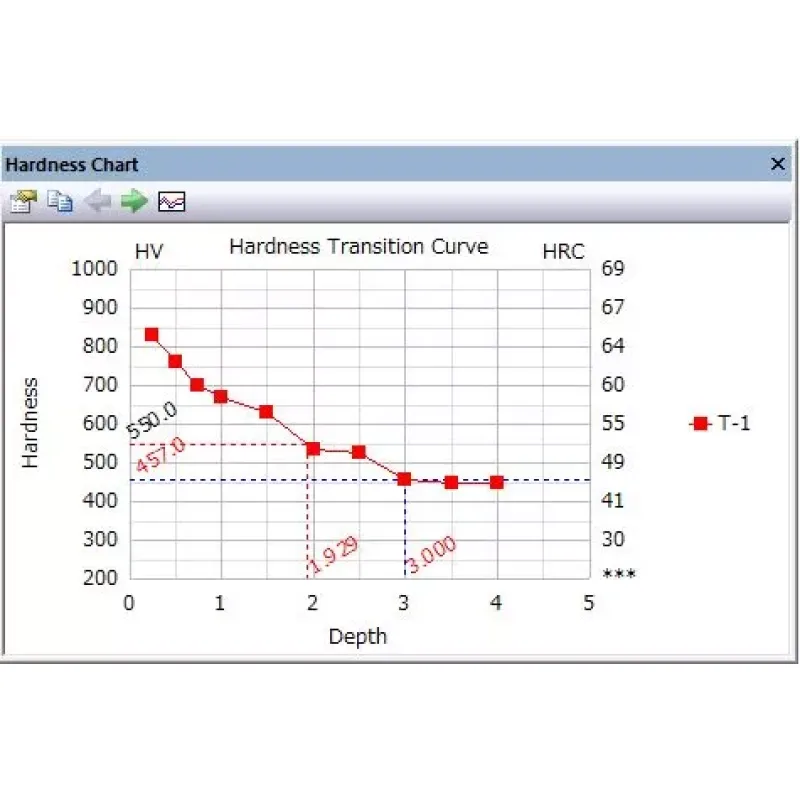

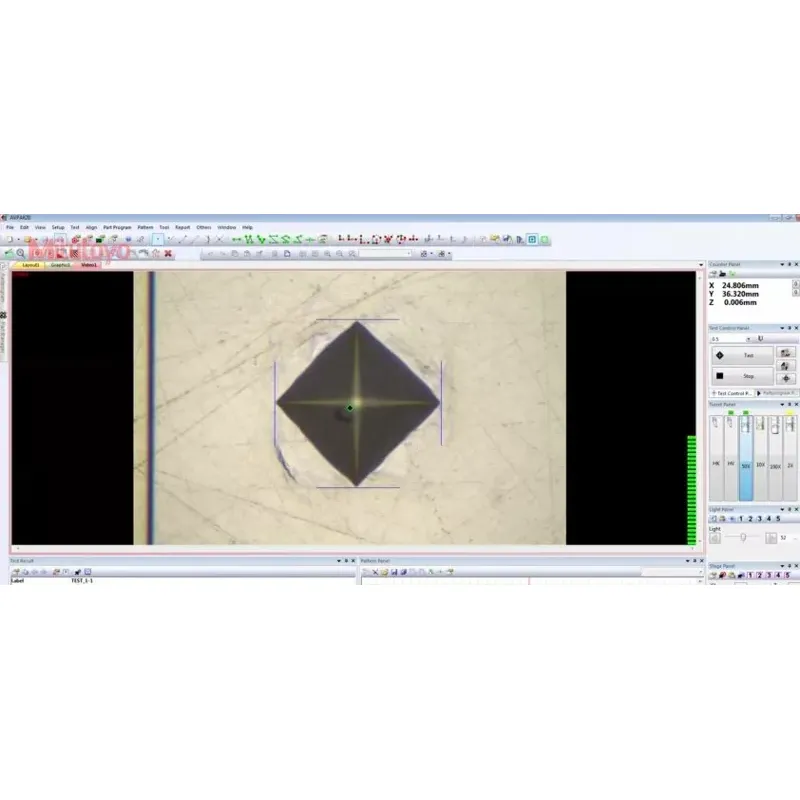

  • Software functions AVPAK:
    Turret and stage control, contrast level indicator for easy focus, autofocus (D-Types), automatic Illumination, auto reading function, ISO 18203 conform hardening depth evaluation presets, CHD, NHD, SHD; Jominy Test; guide Function for single test/pattern test/standard test, curved surface compensation, hardness conversion, overview image creation (C- and –D-Types), part programming, incl. edge detection, coordinate alignment, pattern creation and application, report creation, external data output, StatusMonitor compatibility
  • Sprachunterstützung:
    Japanese, English, German, French, Italian, Spanish, Korean, Simplified Chinese, Traditional Chinese, Turkish, Portuguese, Polish, Czech, Hungarian, Dutch, Russian, Thai
  • Standard objective lenses:
    MH Plan 2x, 10x and 20x
  • Steuerung:
    AVPAK software control
  • Stromversorgung:
    AC 100 - 240 V; automatische Erkennung
  • Turret drive method:
    Motor/Manual
  • Vibrationsfrequenz:
    10 Hz oder weniger
  • Wasserwaage:
    11AAB941
  • XY-Kreuztisch:
    810-462-10
  • Z-Achse:
    Manuelle Höhenverstellung
Цену уточняйте
Есть в наличии
