• Модель:
    810-401-13-ASET1
  • Артикул:
    810-401-13-ASET1
  • Aperture diaphragm:
    variable
  • Applicable Knoop scales:
    HK0,01; HK0,02; HK0,03; HK0,05; HK0,1; HK0,2; HK0,3; HK0,5; HK1
  • Applicable Vickers scales:
    HV0,01; HV0,02; HV0,03; HV0,05;HV0,1; HV0,2; HV0,3; HV0,5; HV1
  • Auflösung:
    0,01 HV units (settable)
  • Außenabmessungen (BxTxH):
    341x670x581 mm
  • Auswahl Prüfkraft:
    Touch panel
  • Bedienung Revolver:
    Touch panel
  • Bereich Prüfkraft:
    98.07-9807mN (0.01-1kgf)
  • Betriebstemperatur °C:
    5-40
  • Datenausgabe:
    RS-232C-, SPC-Digimatic- (D-Typ) und USB-Anschluss
  • Diamant Eindringkörper:
    Enthalten
  • Focus method:
    manual
  • Härtevergleichsplatte:
    700 HV0,3 Ø25mm x 6mm
  • Indenter approach speed:
    60 μm
  • Kompatibel mit MeasurLink:
    Ja
  • Leistungsaufnahme Watt:
    31
  • Light source illumination unit:
    Weiße LED
  • Masse Hauptgerät:
    41 kg
  • Max. Werkstückgewicht:
    3 kg
  • Max. Werkstückhöhe:
    133 mm
  • Measuring microscope:
    standard
  • Netzleitung:
    Nicht enthalten
  • Normen KC Bruchzähigkeit:
    based on IF method (JIS R1697)
  • Normen Knoop:
    ISO 4545-2, ASTM E92, ASTM E384, JIS B 7734
  • Normen Vickers:
    ISO 6507-2, ASTM E92, ASTM E384, JIS B 7725
  • Number of indenter ports:
    2 (1 equipped)
  • Number of objective lens ports:
    4 (2 equippied)
  • Optical system:
    Infinitely corrected
  • Prüfdauer:
    5-999 s (1 s Schritte)
  • Prüfkraftaufbringung:
    Electromagnetic (Voice coil)
  • Prüfraumausladung:
    160 mm
  • Prüftisch und Amboss:
    Ø19 mm
  • Prüfzertifikat:
    Enthalten
  • Range XY:
    25x25 mm
  • Relative Luftfeuchtigkeit:
    80 % oder weniger, ohne Kondensation
  • Software functions AVPAK:
    Turret and stage control, contrast level indicator for easy focus, autofocus (D-Types), automatic Illumination, auto reading function, ISO 18203 conform hardening depth evaluation presets, CHD, NHD, SHD; Jominy Test; guide Function for single test/pattern test/standard test, curved surface compensation, hardness conversion, overview image creation (C- and –D-Types), part programming, incl. edge detection, coordinate alignment, pattern creation and application, report creation, external data output, StatusMonitor compatibility

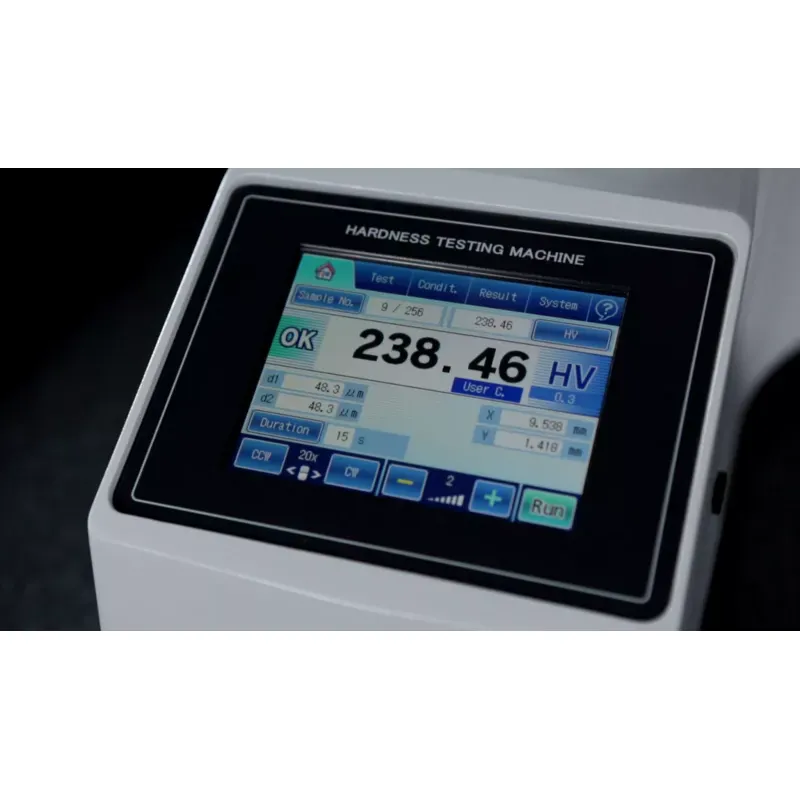

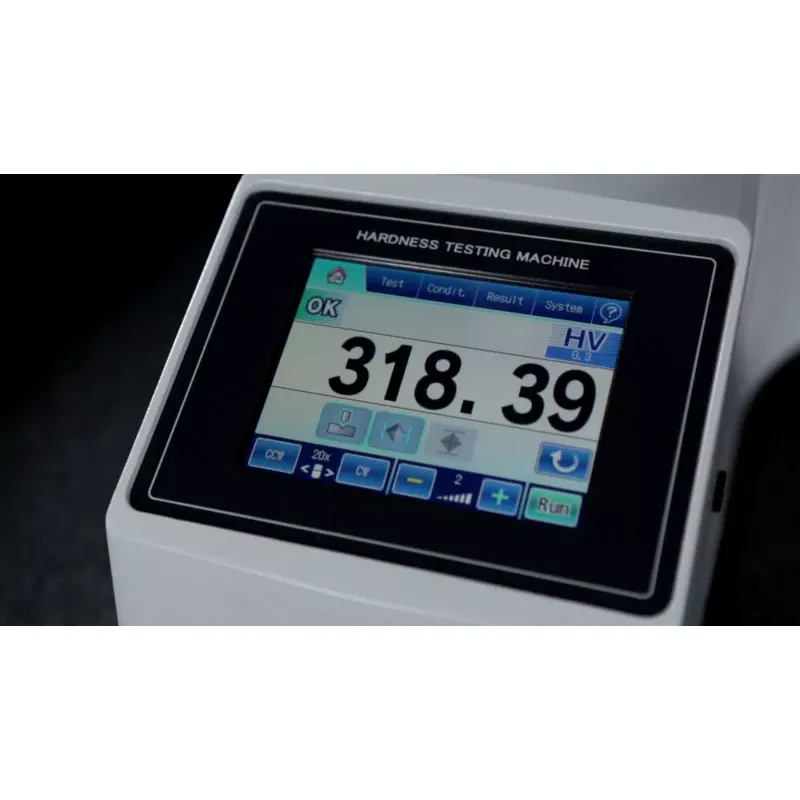

  • Softwarefunktionen Touchscreen:
    3 display formats (standard screen, list screen with average hardness, simplified screen), Turret control, test force control, GO/NG judgment, test set-up, test condition guide, curve and user correction, hardness conversion, statistics calculation
  • Sprachunterstützung:
    Japanese, English, German, French, Italian, Spanish, Korean, Traditional Chinese, Simplified Chinese, Turkish, Portuguese
  • Standard objective lenses:
    MH Plan 10x and 50x
  • Steuerung:
    5,7" touch screen display control
  • Stromversorgung:
    AC 100 - 240 V; automatische Erkennung
  • Turret drive method:
    Motor/Manual
  • Vibrationsfrequenz:
    5 Hz oder weniger
  • Wasserwaage:
    mounted on main unit
  • XY-Kreuztisch:
    810-420
  • Z-Achse:
    Manuelle Höhenverstellung
