- Модель:K551369
- Артикул:K551369
- 50
- Anwendung:KMG
- Bohrungs-∅ a:6,6
- Breite 1:25 mm
- Gewicht:180 g
- Gewinde 1:M6
- Gewindeabstand 1:12,5 mm
- Höhe 1:150 mm
- Länge 1:75 mm
- Produktreihe:eco-fix eco-fixplus
- Systemkomponente:Build-up component

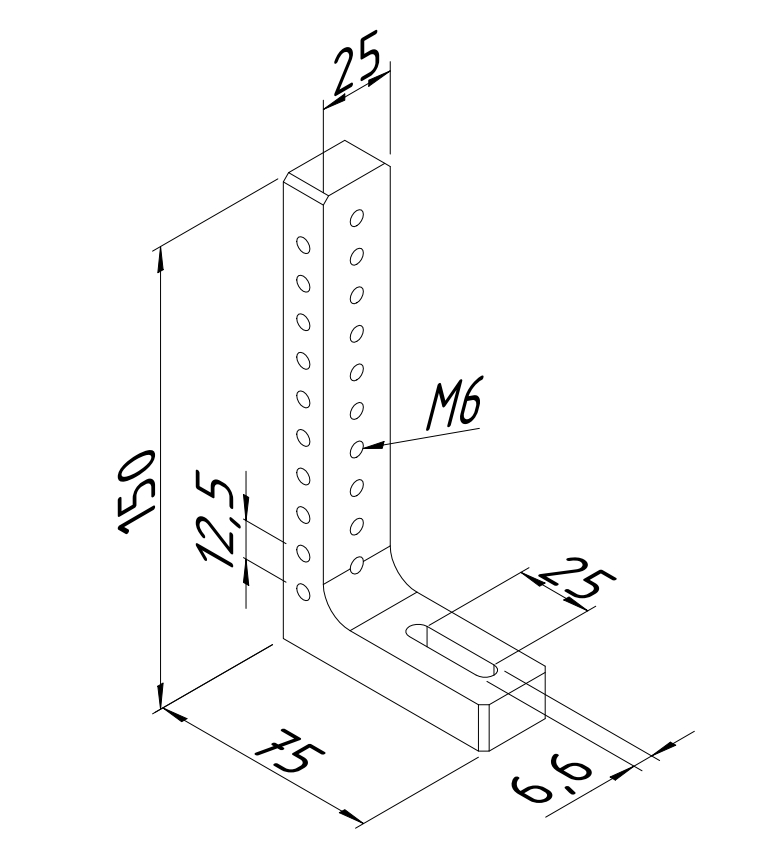

Angle bracket 150 mm
Enables change in the build-up and clamping direction. Thanks to the vertical orientation, product features can be measured from both sides.
Alternatively, more parts can be positioned within the volume of the CMM.
