• Модель:
    K551368
  • Артикул:
    K551368
  • Anwendung:
    KMG
  • Bohrungs-∅ a:
    6,6
  • Breite 1:
    25 mm
  • Gewicht:
    140 g
  • Gewinde 1:
    M6
  • Gewindeabstand 1:
    12,5 mm
  • Höhe 1:
    100 mm
  • Länge 1:
    75 mm
  • Produktreihe:
    eco-fix eco-fixplus
  • Systemkomponente:
    Build-up component
5 912 грн.
Есть в наличии

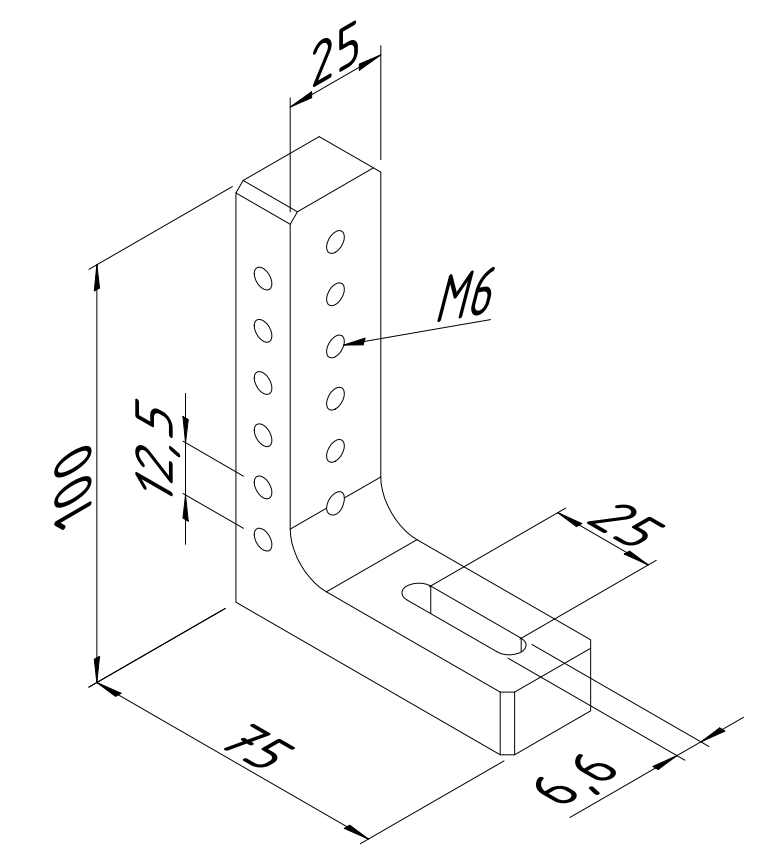

Angle bracket 100 mm Enables change in the build-up and clamping direction. Thanks to the vertical orientation, product features can be measured from both sides. Alternatively, more parts can be positioned within the volume of the CMM.
