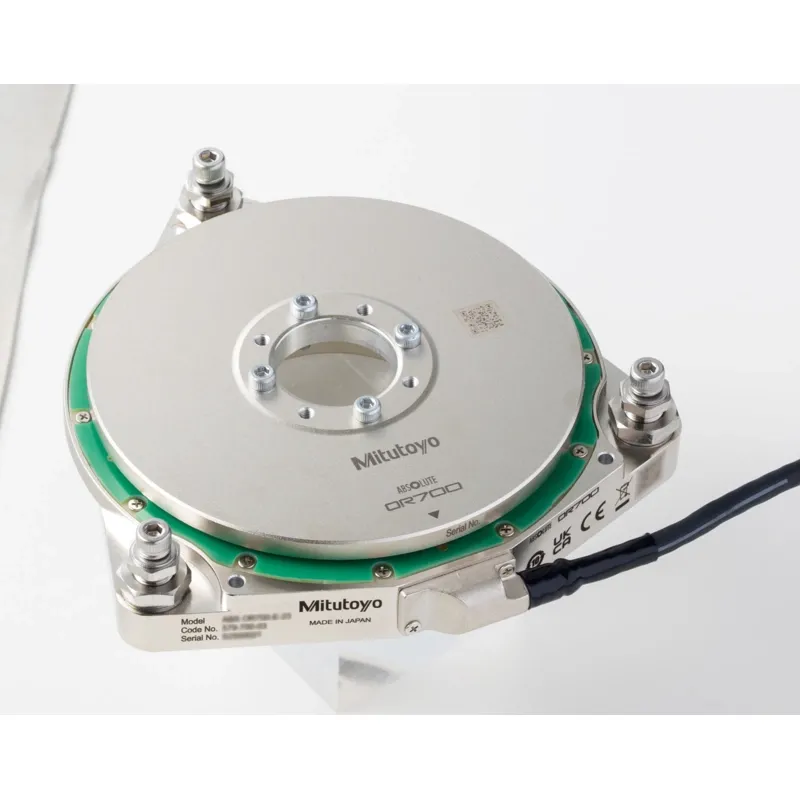

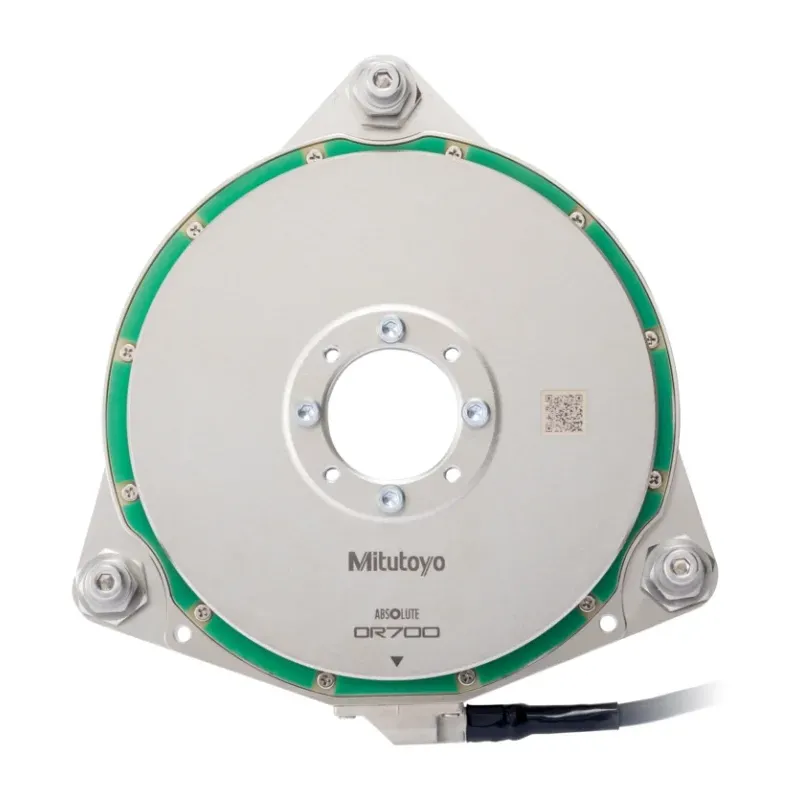

- Модель:579-700-93
- Артикул:579-700-93
- 50
- Angle detection/output method:Single-turn absolute
- Ansprechgeschwindigkeit:2000 min¯¹
- Auflösung:23bit (approx. 0,15 arcseconds)
- Betriebsbedingungen Feuchtigkeit:20-80%RH (non-condensing)
- Betriebsbedingungen Temperatur:0°C - 50°C
- Detector cable length:1 m (from stator with waterproof connector)
- Encoder type:Electromagnetic Induction
- Feedback cable:sold separately
- Genauigkeit (20 °C):±5 arcseconds
- Größe:Stator: D 140mm(d 40mm) x T 16mmStator: D 140mm(d 40mm) x T 21,5mm (incl. adj. mech.)Rotor: D 100mm(d 25mm) x T 7mm
- Lagerung Temperatur:-20°C - 70°C
- Schnittstelle:BiSS-C interface
- Shock resistance:980m/s²(11ms)
- Stromversorgung:5VDC
- Vibration resistance:196m/s² (55-2000Hz)
Highly resistant to water and oil
Using Mitutoyo's proprietary electromagnetic induction technology, the encoder delivers exceptional resistance to water and oil contamination. This enables highly precise angular positioning and adjustment of rotary tables integrated into machine tools and other industrial equipment.
Thin body thanks to open structure
The open structure results in a thin body, making the encoder easy to install in small spaces.
Greatly reduced time for installation
The dedicated application software for ABS OR700 visualises the installation status. The dedicated adjustment tool and navigation of the software enable you to attach the encoder easily and quickly.
Using Mitutoyo's proprietary electromagnetic induction technology, the encoder delivers exceptional resistance to water and oil contamination. This enables highly precise angular positioning and adjustment of rotary tables integrated into machine tools and other industrial equipment.
Thin body thanks to open structure
The open structure results in a thin body, making the encoder easy to install in small spaces.
Greatly reduced time for installation
The dedicated application software for ABS OR700 visualises the installation status. The dedicated adjustment tool and navigation of the software enable you to attach the encoder easily and quickly.
